Vatech A9™

Vatech A9™
Start your 3D CBCT Journey
Integral FOV 10×8 cm for 3D Image
Superb Diagnostic Images
2 dedicated sensors for Pano/CBCT and Ceph
The Vatech A9 is a CBCT with OPG with state-of-the-art technology for metal artifact reduction and is the ideal machine for every clinic. The anatomical FOV of 10×8 cm allows scanning of both jaws including distal sections.

AI for Segmentation & Extraction
In today’s rapidly evolving dental field, AI is reshaping how professionals diagnose and plan treatments — and Vatech’s Ez3D-i software puts that power to work, enhancing speed, precision, and clinical confidence.
Featuring AI-driven tools like automatic anatomical segmentation of up to 135 structures, intuitive two-click root canal tracing with precise length and diameter measurements for Endo procedures, and smart implant planning with crown mirroring, Ez3D-i helps doctors work more efficiently and deliver better patient outcomes.
Discover how AI in Ez3D-i can transform your workflow and elevate patient care.

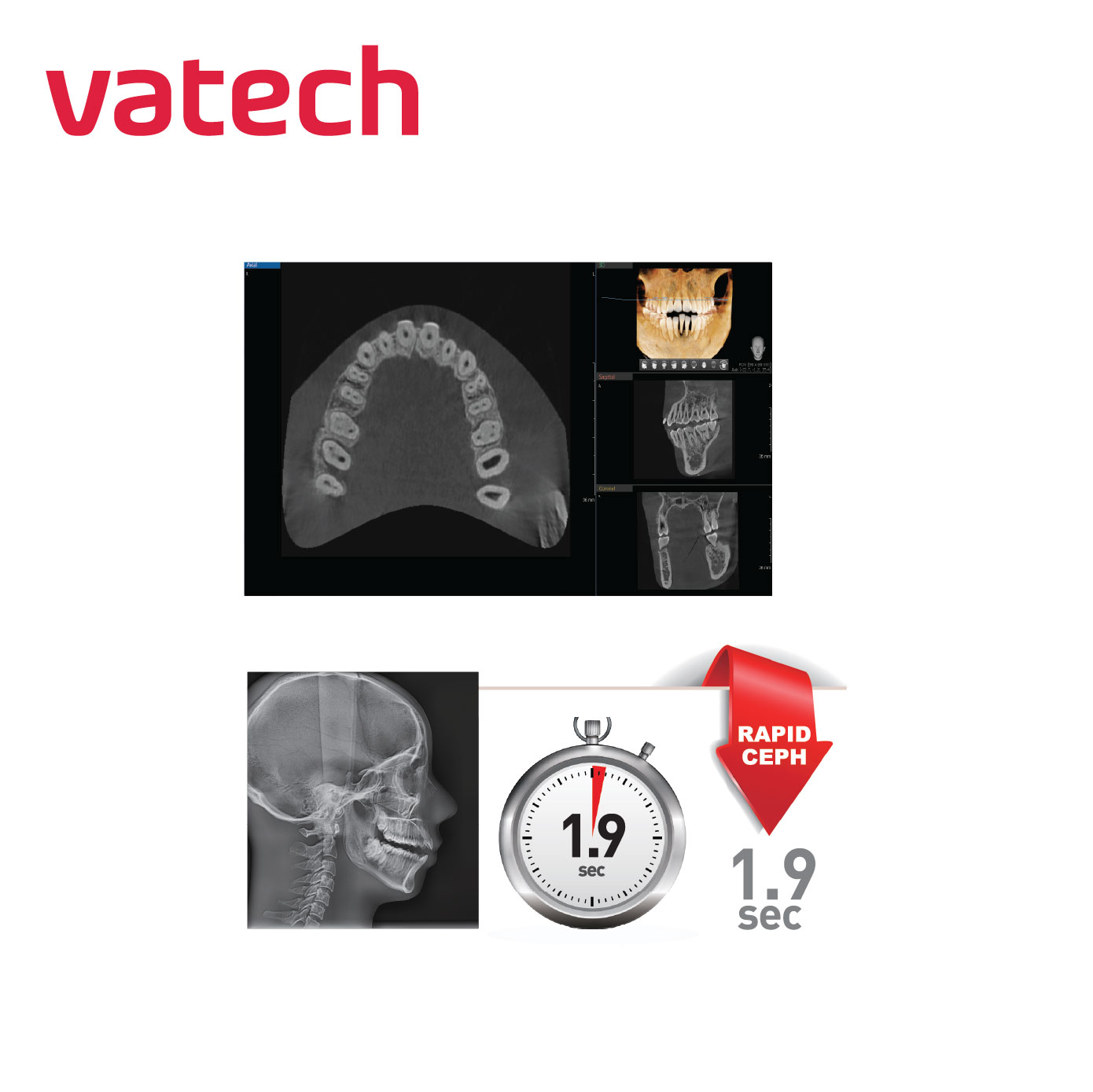

Integral FOV 10×8 cm
The 10×8 images provided by the A9 allow fundamental diagnosis and treatment planning, including both the maxillary and mandibular areas, in a single scan.
The Vatech A9 3D CBCT unit is the perfect choice for any dental clinic that is looking to expand their practice by providing higher value treatments such as orthodontics and implantology.

Exchange your old 2D for a new 3D CBCT
The A9 provides the most precise and high-quality 2D and 3D images by combining image processing and accumulated experience in dental imaging from Vatech.
When taking 2D images, you’ll appreciate the MAGIC PAN function, which uses hundreds of layers of panoramic images during acquisition. Vatech’s artificial intelligence examines all the layers, reconstructs them, and provides the optimal diagnostic image.
The A9 will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.

2 Dedicated Sensors
The A9 offers 2 dedicated and embedded sensors for Pano / 3D CBCT and Ceph. This not only allows you to capture an optimal image from each sensor, but it also creates an efficient workflow.
The next step in cephalometric technology, is Vatech’s new Rapid Ceph Technology significantly minimize the motion artifacts and acquire the highest quality orthodontic images of the patient within 1.9 second.

A9 Specifications
Function (Device Type): 3 in 1: Pano + CBCT + Ceph
Voxel size: 0.2–0.3 mm
Focal Spot Size: 0.5 mm
FOV size without stitching: 8×8 cm (Anatomical 10×8 cm)
FOV Double Scan: n/a
Upgrade to Ceph: Yes
Exposure Time: Pano: 2.7–13.5 sec / Ceph: 1.9–5.4 sec / CBCT: 11 – 15.5 sec
Dynamic range: 14 bit
Panoramic type: Magic Pan 21 layers, Standalone Rapid Ceph (optional)
Patient position: Standing, seated, wheelchair, mirror positioning
Dimension: 131.57 cm×88.39 cm×194.81 cm
Weight: 160.49 kg (with the Base)
SW: EzDent-i / Ez3D-i / EzOrtho
