Vatech PaX-i Plus™

PaX-i™ Plus
Premium panoramic image quality
Superior Image Quality
Two Dedicated Sensors
Rapid Ceph Technology
The PaX-i Plus provides the most precise and high-quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech. This will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.

The Advanced Imaging Solution
The images from PaX-i Plus provide a detailed view of the patient’s teeth, roots and surrounding structures, allowing dentists to accurately diagnose various dental problems.
This includes detecting cavities, assessing the extent of decay, identifying impacted teeth and evaluating bone structure.

2 Dedicated Sensors
The PaX-i Plus offers two dedicated and embedded sensors for Pano and Ceph. This not only allows you to capture an optimal image from each sensor, but it also creates an efficient workflow.
Images from PaX-i Plus are super quick to capture, with minimal discomfort for the patient. This efficiency allows dentists to obtain necessary diagnostic information promptly, which can be crucial for emergency cases or busy practices.

Images Exclusively Designed For Ortho
The PaX-i Plus provides optimal images exclusively designed for orthodontics.
There are 2 image sizes available, Lateral and Full Lateral, allowing you to choose your image size based on your diagnostic needs.
A full lateral image size is 30 % wider and shows the occipital area of the patient, which enables comprehensive diagnosis.

Rapid Ceph Technology ~ 1.9 Sec
1.9 second acquisition time produces superb image quality. Vatech’s new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.
Experience Auto Tracing with EzOrtho SW
With AI, recognition of cephalometric points and soft tissues are identified on the cephalometric image automatically within seconds.

PaX-i Plus Specifications
Kinematics (sensing method): Multi–motor with autofocus and multifocal technology, / 5 layers, 27 Pano and 5 Ceph projections, UHD resolution
Exposure time (Pano and Ceph): Pano: 1.3-20.2 sec / Ceph scan: 1.9-5.4 sec
Dynamic Range: 14 bit
Upgrade to Ceph: YES
Sensor for Ceph: Standalone RapidCeph CMOS sensor
TWAIN compatibility: Yes

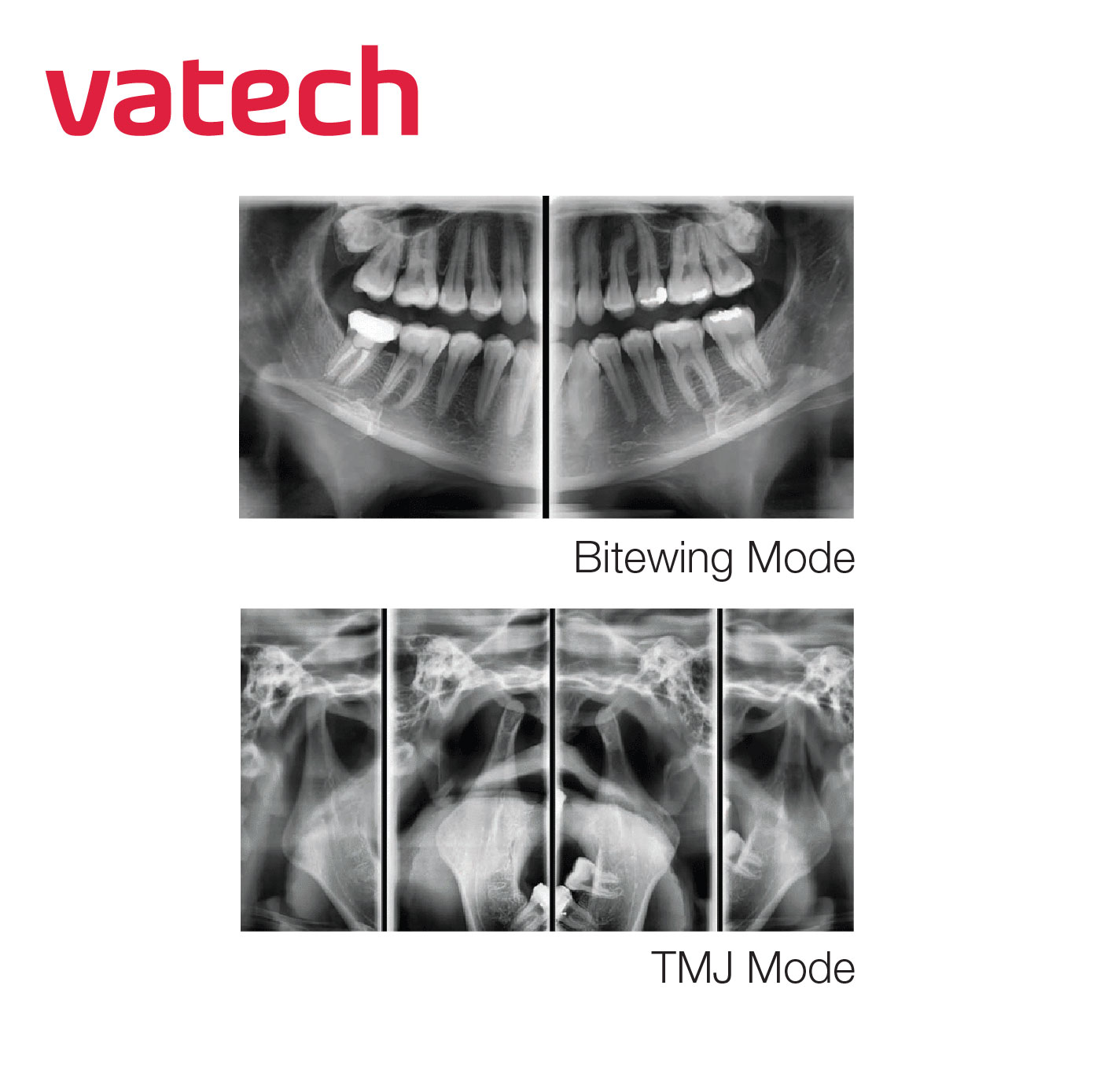

Function: Panoramic, Extraoral Bitewing, segmented Pan, TMJ, and Sinus
Focal Spot: 0.5 mm
kV: 60–99 kV
mA: 4–16 mA
Dimension: 99.06 cm×119.38 cm×231.14 cm / (193.04 cm×144.78 cm×231.14 cm)
SW: EzDent–i / Ez-Ortho
